PRODUCT

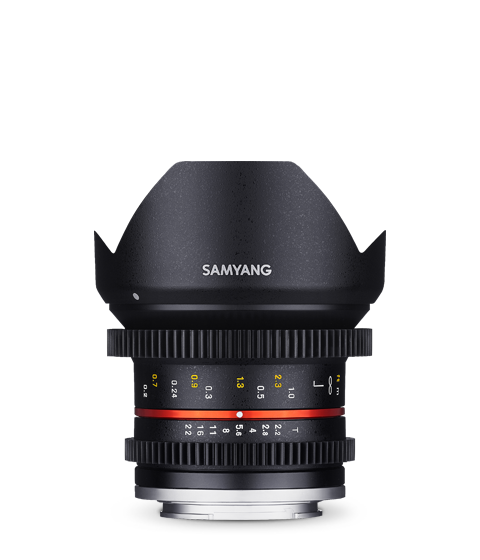

12mm T2.2 Cine NCS CS
![제품 이미지](/upload/product/product/1551766886.png)
![제품 이미지](/upload/product/product/1551766896.png)
![제품 이미지](/upload/product/product/1551766908.png)
![제품 이미지](/upload/product/product/1551766918.png)
![제품 이미지](/upload/product/product/1551766929.png)
![제품 이미지](/upload/product/product/thumb_1551766886.png)
![제품 이미지](/upload/product/product/thumb_1551766896.png)
![제품 이미지](/upload/product/product/thumb_1551766908.png)
![제품 이미지](/upload/product/product/thumb_1551766918.png)
![제품 이미지](/upload/product/product/thumb_1551766929.png)
享受宽达的广角世界在无反光镜相机
Feel the wide-angle universe in mirroless camera!
森养12mm T2.2 Cine NCS CS为APS-C用Crop Sensor而设计的Cine无反光镜镜头(Mirrorless)镜片。
特征对焦圈符合follow focus system,并且安静的光圈调节环提供精细而便利的摄影环境。本低T-number手动光圈方式镜头能摄影自然的景物在多种的情况下。本镜头对光投射表出出色的光学性能。使用Nano Coating System(NCS)腹膜技术,与过去的UMC相比,不仅具备更低的折射率和优秀的对比性能,还带有更高的透光率,从而达到色晕及重影现象的最小化。最小光圈时六片灯圈叶片呈类似圆状而表现光芒很漂亮。
10组12片镜片光学系统包括一片玻璃非球面镜片(ASP)一片复合非球面镜片(H-ASP)和三片低分散镜片(ED),保证高画质结果视频。H-ASP最大化色差补偿, 实现优秀的画质和高对比。ED减少不必要的光散射有效地砸色差。根据这光学系统,实现了0.2m的超短焦距。
森养12mm T2.2 Cine NCS CS的基本框架由高强度铝合金制成,坚固耐劳。产品构成包括叶状遮光罩,减少不必要的光散射。
本镜片可与Canon-M, Sony-E, MFT, Samsung NX, Fujifilm-X等五款相机搭配使用
※ 根据卡口不同,镜头的图片也可能会不同。
Technical Information
-
Specifications
Specifications 12mm T2.2 Cine NCS CS Aperture Range T2.2 ~ T22 Optical
Construction12 ELEMENTS IN 10 GROUPS
(2 ASPHERICAL LENS)Minimum
Focusing Distance0.2m (0.65ft) Filter Size 67.0mm Maximum Diameter 73.6mm Mount CANON
MFUJIFILM
XSAMSUNG
NXSONY
EMICRO
FOUR
-THIRDSAngle Of View APS-C 95.7˚ 98.9˚ 98.9˚ 98.9˚ - FOUR-THIRDS
(4/3")- - - - 83.0˚ Length(mm) 59.0mm 59.4mm 51.6mm 59.1mm 57.9mm Weight(g) 250g 265g 240g 250g 260g Gear Module 0.8mm A 7.5mm B 6.0mm C 30.4mm D 16.4mm 16.8mm 9mm 16.5mm 15.3mm Focus Ring Diameter 73.6mm Aperture Ring Diameter 64.0mm -

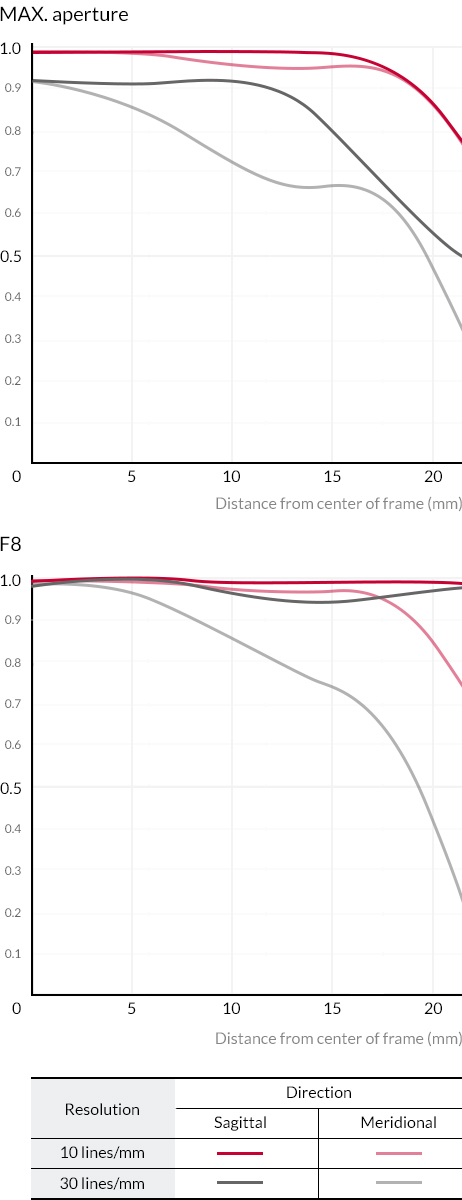

MTF CHART
-

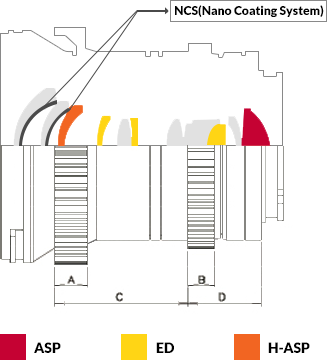

Optical Construction
-
Lens Profile
-
