PRODUCT
AF 24mm F1.8 FE
新型Tiny镜头专为风景摄影和星空摄影摄影师而设计。得益于小体积、轻重量、最小彗差、较短的最小对焦距离等产品特点，您可以不分昼夜尽情摄影。该镜头F1.8最大光圈拍出的图像质量出色，背景虚化效果圆润自然。星空对焦模式和LED指示灯的新功能最大限度地提高了捕捉夜空的可用性。
(1).png)
产品规划 / Jihoon Lee
适合天文摄影的杰作
这一新型Tiny镜头可让您成为天文摄影大师！
1. 超高分辨率，最小球差和彗差
2. 在宽光谱上可以拍摄的24mm焦距
3. 为星空对焦模式摄影优化的功能 –和LED指示灯自定义模式
用于天文摄影的理想的自动对焦广角定焦镜头
紧凑的高分辨率24mm F1.8定焦镜头
森养的最新光学技术让大口径广角定焦镜头的F1.8最大光圈获得惊人的分辨率。由8组11片镜片组成中7片特殊镜片（2个ASP、3个HR、2个ED）可让您发挥无限创意；最小的球差和彗差可让您获得令人惊叹的图像，因此它特别适合天文摄影。
-
[全新] 适合星空摄影的星空对焦模式
AF 24mm F1.8 FE镜头具有名为“星空对焦模式”的新功能，带有用于星空摄影的“LED指示灯”。“自定义模式”可通过新设计的对焦锁定按钮进行操作。一旦用户进入星空对焦模式， LED指示灯将闪烁一次，焦点将自动安排无限位置。
*用户可以使用对焦锁定按钮保存自己的对焦位置。 -
最大化的可用性

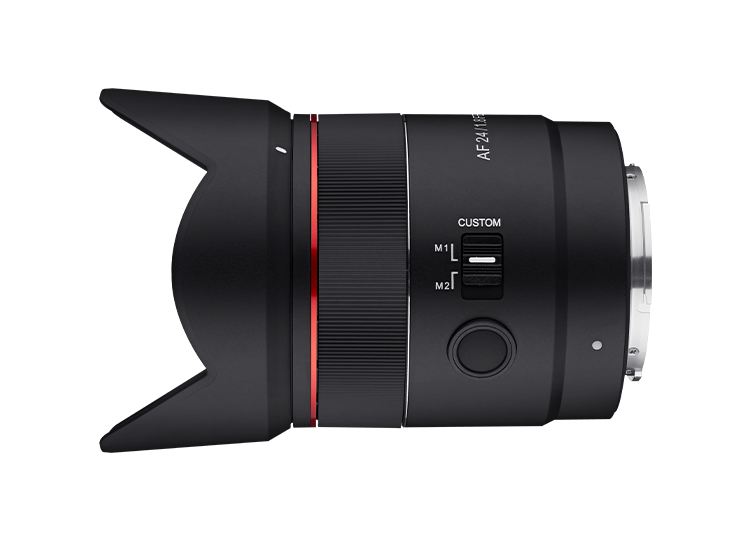

[全新] 将可用性最大化的对焦锁定按钮 & 自定义开关
自定义对焦锁定按钮
按下镜头上的该按钮将使镜头锁定在特定对焦距离。用户还可以通过机身上的菜单设置为对焦锁定按钮分配其他所需功能。
自定义开关
配备自定义开关，拍摄和操作更加直观简单。您可以轻松地在开关上选择光圈控制模式或MF模式等各种功能，享受适合个人喜好的拍摄模式。
*未来将通过固件升级更新添加更多功能。

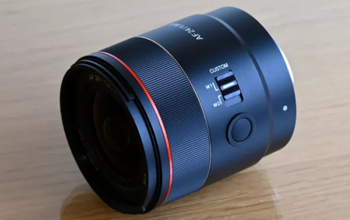

小巧轻便的现代化设计
AF 24mm F1.8 FE重量仅为230g(8.1oz)，长度为71.5mm(2.8in)。体积小，重量轻，与紧凑的E卡口微单相机匹配使用时便于携带。采用哑光处理与激光雕刻字体，可读性强，触摸式转接索引为用户增加了便利性。此外，5处防尘防水设计隔绝外部环境的灰尘、小雨和小雪，保障在不太完美的条件下也能捕捉惊人的图像。
-
适用于任何地方的多功能镜头
24mm焦距可用于风景摄影、室内摄影、甚至快照
24mm F1.8 FE镜头提供83.7˚ 广角视角和0.19m(0.62ft)的短最小焦距。它允许你在不同的环境中，无论是在室内还是室外，都能拍照。结合这种广角镜头，你可以自由创造自己的视角与创意。
大光圈F1.8，浅景深
AF 24mm F1.8 FE拥有用于清晰对焦和美丽的背景虚化的快速F1.8光圈。它可以让您完全控制景深，以便您分离主题和背景。此外，9片圆形光圈叶有助于打造圆润自然的背景虚化效果。
适合静像和电影拍摄的先进的快速安静自动对焦
现在，自动对焦不仅需要考虑捕捉图像的准确度和速度，还需要考虑安静度和流畅度。AF 24mm F1.8 FE采用最新的STM(步进马达)，可以更安静、更精确地控制更大、更重的对焦镜片组，在照片和视频中都能提供极佳的图像质量。
Technical Information
-
Specifications
Model Name
AF 24mm F1.8 FE
Aperture Range
F1.8 ~ 22
Lens Optical
Construction
11 Elements in 8 Groups
Special Lens
ASP 2, HR 3 , ED 2
Coating
UMC
Minimum Focusing Distance
0.19m (0.62ft)
Magnification Ratio
0.21x
Diaphragm Blades
9
Filter Size (mm)
Φ 58.0
Maximum Diameter(mm)
Φ 65.0
Mount
Sony FE
Angle of view
Full Frame
83.7˚
APS-C
60.9˚
Length
71.5mm / 2.8in
Weight
230g / 8.1oz
Weather Sealing
O
AF/MF mode switch
X
AF Motor
Linear STM
-
MTF Chart
-
Optical Construction
| Model Name | AF 24mm F1.8 FE | ||
|---|---|---|---|
| Aperture Range | F1.8 ~ 22 | ||
| Lens Optical | Construction | 11 Elements in 8 Groups | |
| Special Lens | ASP 2, HR 3 , ED 2 | ||
| Coating | UMC | ||
| Minimum Focusing Distance | 0.19m (0.62ft) | ||
| Magnification Ratio | 0.21x | ||
| Diaphragm Blades | 9 | ||
| Filter Size (mm) | Φ 58.0 | ||
| Maximum Diameter(mm) | Φ 65.0 | ||
| Mount | Sony FE | ||
| Angle of view | Full Frame | 83.7˚ | |
| APS-C | 60.9˚ | ||
| Length | 71.5mm / 2.8in | ||
| Weight | 230g / 8.1oz | ||
| Weather Sealing | O | ||
| AF/MF mode switch | X | ||
| AF Motor | Linear STM | ||
