COMPACT CINE AUTO-FOCUS © Marc Vilalta

V-AF Series

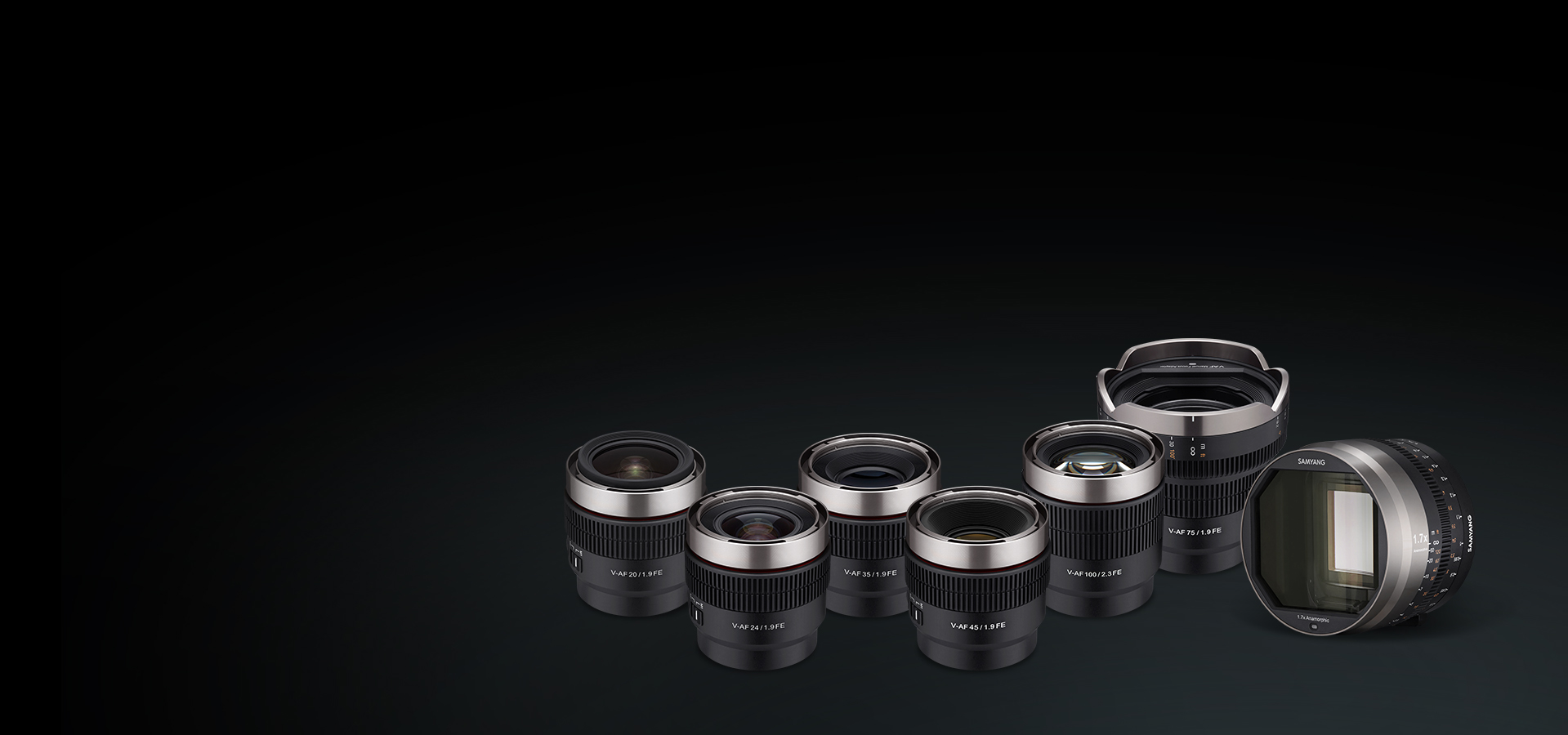

Compact Cine Autofocus Lenses


Easily create cinematic footage with smooth and precise AF performance
Unified form factor optimized for gimbal and drone shooting
Exceptional shooting versatility through dedicated accessories

  • 20mm T1.9
  • 24mm T1.9
  • 35mm T1.9
  • 45mm T1.9
  • 75mm T1.9
  • 100mm T2.3
  • Manual Focus Adapter
  • 1.7x Anamorphic MF Adapter

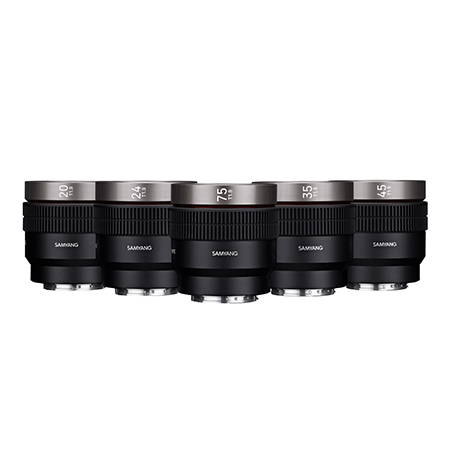

Unified Form Factor
- Compact & Lightweight

All lenses have a unified center of gravity for easy changing and balancing,
which significantly saves time when shooting with gimbals and drones.

Its compact size and lightweight allow you to shoot video content
more conveniently and quickly.

Outstanding Usability

2 Tally lamps, located in front of the lens and mount index, intuitionally show recording status.

Simple user interface solutions for independent content creators' self filming.

Ready

REC

8K & Unified Color Tone

V-AF lens designed for high-resolution camera up to 8K camera, offering fast aperture and precise bokeh. The unified color tone reduces the post-production time.

Expandability

V-AF lens has an electronic connector in front of the lens, enabling communication between the V-AF lens and its exclusive accessories.

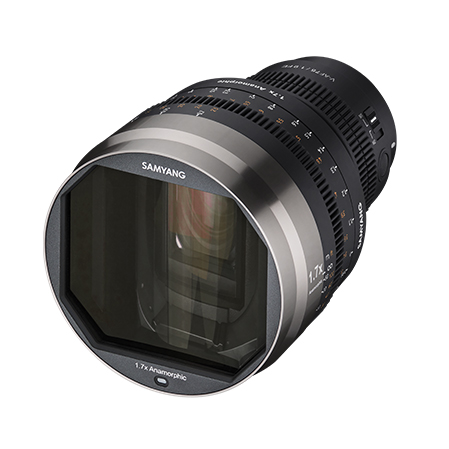

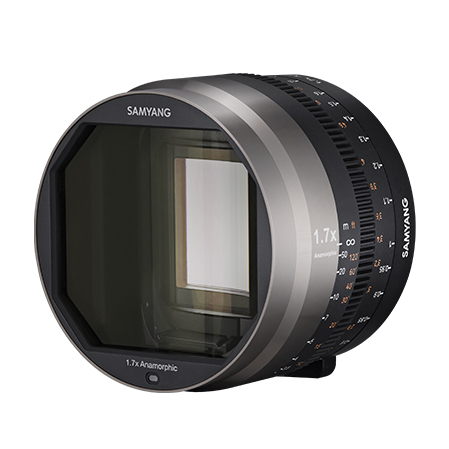

1.7x Anamorphic
MF Adapter

When coupled with selected T1.9 V-AF lenses,
this exclusive accessory provides the brightest
Anamorphic Solution on the market. Electronic contacts on
the adapter provide easy operation and superior resolution.
It is compatible with the V-AF 24, 35, 45, 75, 100mm lenses.
※ V-AF 24mm is suitable for APS-C/Super 35 modes

Manual Focus Adapter
For V-AF Series

This exclusive accessory allows you precise and detailed focus control and provides professional filming experience. It is compatible with Φ95mm sized matte box.
※ Lens firmware must be updated to the latest version using lens manager in order to use all the new features of the adapter properly

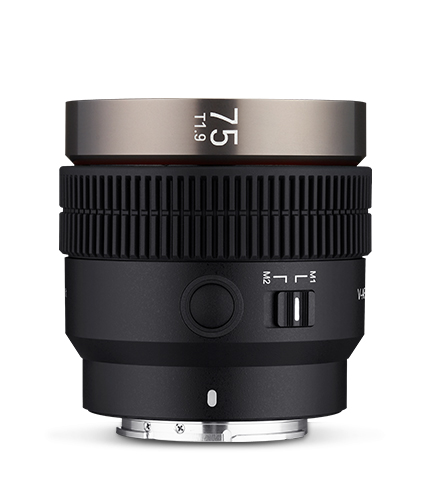

1

1. Consistent Form Factors

Featuring a compact and consistent lens design for easy handling gimbal and follow focus.
Consistent form factors and markings optimized for motion picture production

2 2

2. Tally Lamp

Tally lamp function intuitionally shows recording status

3

3. Smooth Focus Transition

Smooth focus transition while the camera is rolling
Linear MF with 300° focus rotation angle.
Available to set in Lens manager software

4

4. Custom Switch

Customize the function of the focus ring options can be programmed via the Lens Station and Samyang's Lens Manager

5

5. Focus Hold Button

Focus hold function(in AF mode) and Focus save function(in MF mode) are assigned to this button.
*Different functions can be assigned through Samyang Lens Station

6

6. Standardized Color Balance

All of the lenses in the lineup are designed to comply with Samyang's CCI Standard.

7

7. Metal Accessory Mount

This robust mount supports V-AF exclusive accessories and it is sole metal mount representing V-AF design

8

8. Electronic Connector

Electronic connect pins for commnicating with V-AF accessories

9

9. Quiet and Fast AF Performance

Samyang's linear STM autofocus motor works in conjunction with the camera's AF system quick, quiet, and precise focusing performance

10

10. Weather Sealing

This lens features a highly effective dust and splash resistant structure with special sealing on 6 lens points

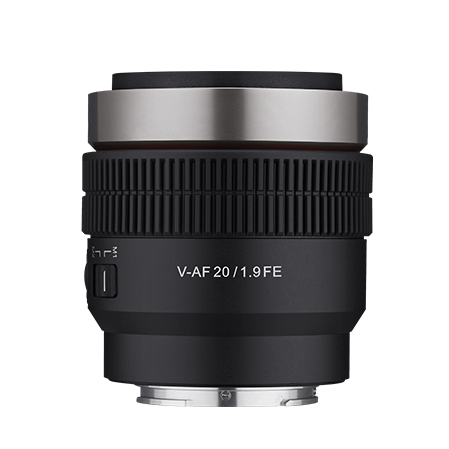

V-AF 20mm

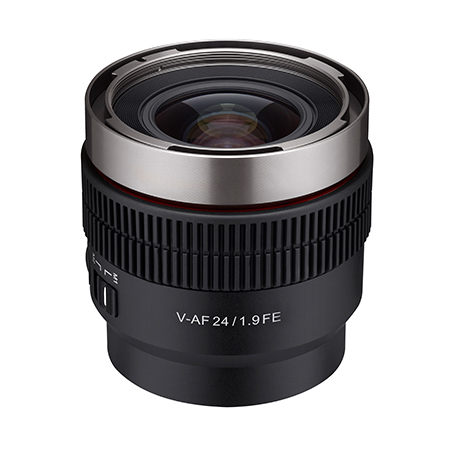

V-AF 24mm

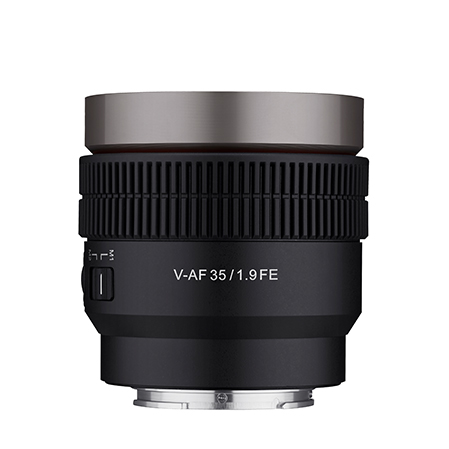

V-AF 35mm

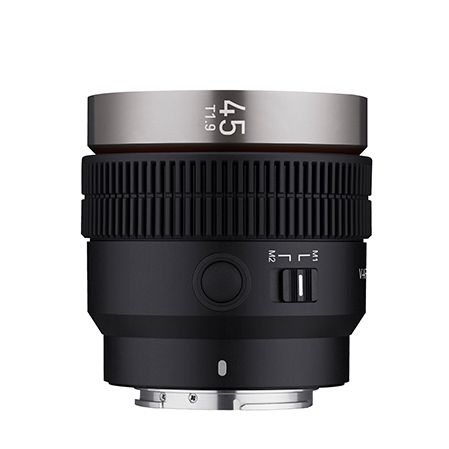

V-AF 45mm

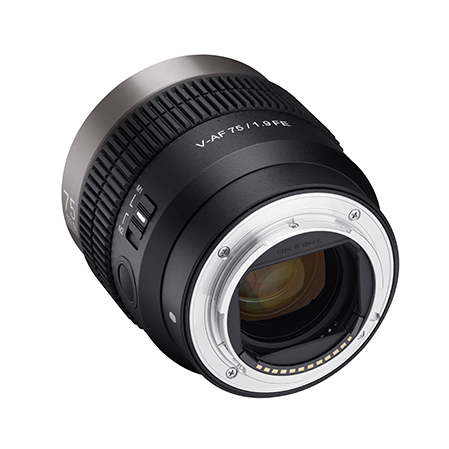

V-AF 75mm

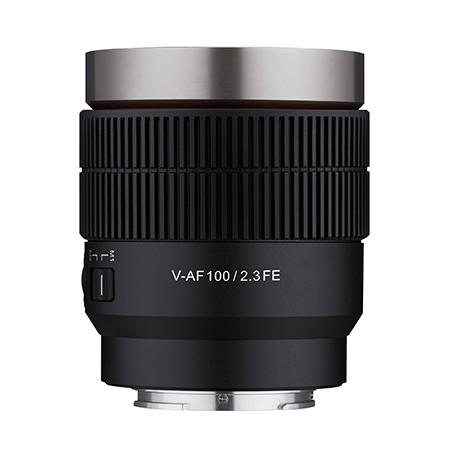

V-AF 100mm

1.7x Anamorphic MF Adapter

1.7x Anamorphic MF Adapter

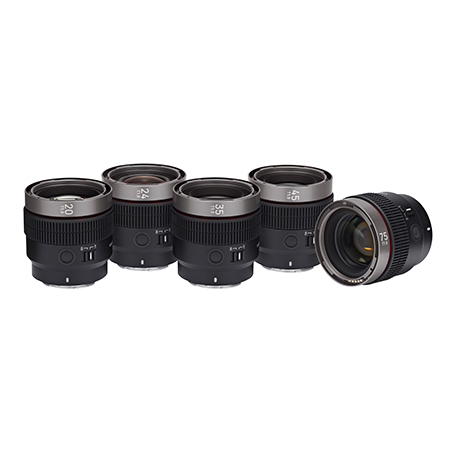

V-AF Series

V-AF Series

SPECIFICATIONS

Specifications
Model Name V-AF 20mm T1.9 V-AF 24mm T1.9 V-AF 35mm T1.9 V-AF 45mm T1.9 V-AF 75mm T1.9 V-AF 100mm T2.3
Maximum T-stop T1.9 T1.9 T1.9 T1.9 T1.9 T2.3
Image Circle Ø 43.3mm Ø 43.3mm Ø 43.3mm Ø 43.3mm Ø 43.3mm Ø 43.3mm
Angle of View Full Frame 94.5° 83.7° 63.6° 52.3° 32.9° 25.4°
Super 35 71.6° 60.9° 43.8° 35.3° 21.9° 16.9°
Focusing Range ∞ to 0.20 m ∞ to 0.19 m ∞ to 0.29 m ∞ to 0.38 m ∞ to 0.69 m ∞ to 0.70 m
∞ to 0.66 ft ∞ to 0.62 ft ∞ to 0.95 ft ∞ to 1.25 ft ∞ to 2.26 ft ∞ to 2.30 ft
Focus Breathing (∞ to 1 m) 0.7% 0.7% 3.1% 5.5% 11.7% 13.0%
Front Diameter Ø 70 mm Ø 70 mm Ø 70 mm Ø 70 mm Ø 70 mm Ø 70 mm
Filter Diameter Rear Gelatin Filter Ø 58 mm Ø 58 mm Ø 58 mm Ø 58 mm Ø 58 mm
Number of Aperture Blades 9 9 9 9 9 9
Weather Sealing O O O O O O
Custom Mode Switch O O O O O O
Focus Hold Button O O O O O O
Rotation Angle of Focus Ring 300° 300° 300° 300° 300° 300°
Size Ø72.2 x 76.9 mm Ø72.2 x 72.1 mm Ø72.2 x 72.1 mm Ø72.2 x 72.1 mm Ø72.2 x 72.1 mm Ø72.2 x 85.3 mm
Weight (without Lens cap) 0.30 kg / 0.65 lbs 0.28 kg / 0.61 lbs 0.28 kg / 0.61 lbs 0.28 kg / 0.61 lbs 0.28 kg / 0.61 lbs 0.28 kg / 0.61 lbs
Mount Sony FE Sony FE Sony FE Sony FE Sony FE Sony FE
Where to Buy
Go
V-AF Manual
PDF 3.4 MB
