PRODUCT
Your First
Cine Lens Set
VDSLR

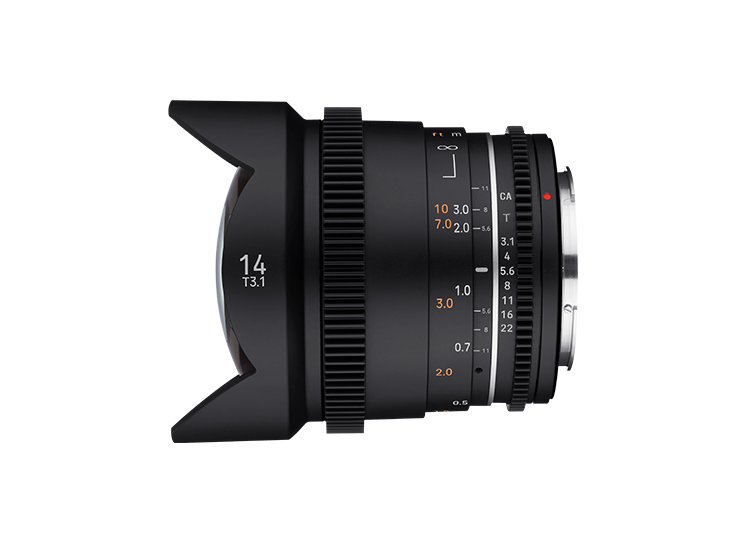

14mm T3.1 MK2
24mm T1.5 MK2
35mm T1.5 MK2
50mm T1.5 MK2
85mm T1.5 MK2
135mm T2.2 MK2
VDSLR 24mm T1.5 MK2
Samyang is introducing a new VDSLR MK2 lineup, enhanced with weather sealing, focal lengths written on both sides, sleek design and 9 aperture blades. Inheriting the Samyang's incredible cinematic video quality, this pioneering cine lens series will continuosly help independent filmmakers and low-budget project directors to broaden their horizons of creativity as their first cine lens set.
(1).png)
Product Planner / Jeremy Shin
Your First Cine Lens Set
The VDSLR MK2 set comprises 6 of the most-used focal lengths: 14mm T3.1, 24mm T1.5, 35mm T1.5, 50mm T1.5, 85mm T1.5 and 135mm T2.2. As well as delivering the beloved image quality and fast T-stop values of the existing VDSLR series, the new models now have weather sealing, 9 aperture blades and their focal lengths are visible on both sides for more professional use. The range is highly versatile, available in 7 camera mounts.

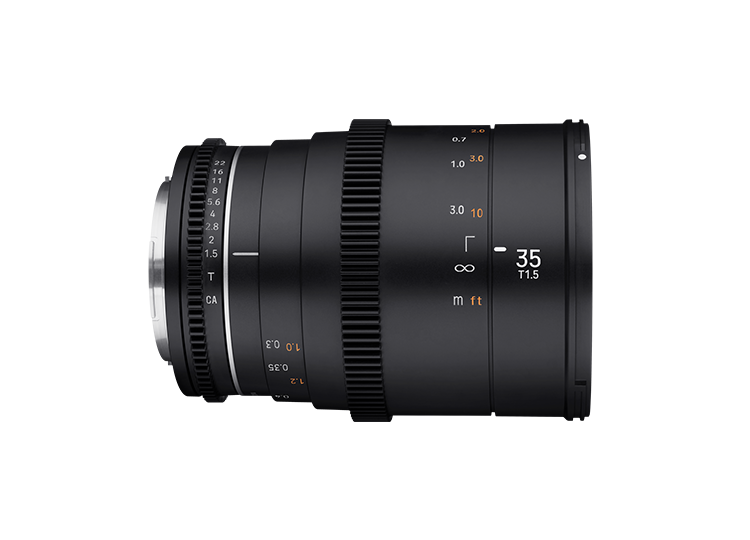

※ This product image is a Canon EF mount lens. Size and design may vary depending on the mount of a lens
Most Popular Focal Lengths
in 7 Camera MountsThe new VDSLR MK2 range consists of 6 focal lengths: 14mm, 24mm, 35mm, 50mm, 85mm and 135mm. These angles are essential for any creative or commercial projects. All 6 lenses are available and fully compatible with 7 camera mounts: Canon EF, Sony E, Canon RF, Nikon F, Canon M, Fuji X and MFT. They are suitable for both DSLR and mirrorless systems and ready to support all types of filmmakers around the globe.
-
Compact Size with Long Focus Throw and De-Clicked Aperture Ring
The compact size of Samyang's VDSLR lenses makes them perfect for hand-held and gimbal shooting. The VDSLR 50mm T1.5 MK2 is only 7.47cm (2.94") in length and weighs just 525.8g (1.16lb), but it is fully-featured with de-clicked aperture and focus gear rings. The long focus throw of over 130° enables cinematographers to focus precisely and exactly on their subjects, creating a more professional feel to video footage than with autofocus photo lenses.
-
Cinematic Video Quality,
Covering Full Frame Sensor SizeIn contrast to their compact size, the VDSLR MK2 lenses cover full-frame sensors (36x24mm) and are ready for the high-quality video making environment. This new series inherits the outstanding image quality of the previous series: All 6 lenses have special glass element such as ASP or ED lens to reduce spherical and optical aberration, producing clear and vibrant images. The 14mm and the 50mm model also have a hybrid aspherical lens element to maintain compact size, without compromising performance.
-
Fast T1.5 for Low-Light Situations
For independent filmmakers, a versatile lens saves time and budget. The Samyang VDSLR MK2 series has fast T1.5 apertures across almost every 6 models, supporting filmmakers and allowing them to concentrate more on the scene and creativity, without having to concern themselves about image quality, even in low-light situations. Also, the shallow depth of field available blurs out the background and highlights the subject, adding depth to the story.
New: 9 Aperture Blades for Exceptional Bokeh and Starburst Effect
The new VDSLR MK2 series has been updated with 9 aperture blades and is able to deliver the latest image trends. The smooth and circular bokeh adds a three dimensional quality and pleasing out-of-focus effect. 18-ray starburst highlights can also be created by stopping down to small apertures.
New: Weather Sealing
As requested by many users, the MK2 series now includes a weather-sealing feature. This protects the most vulnerable gap between the lens and camera mount, to prevent dust, light rain and snow from penetrating. It provides the ability to capture stunning images in less than perfect conditions.
※ Nikon F mount has no weather sealing
New: Updated Design with Side Scales
The Samyang VDSLR MK2 models have a sleek new design; black and matte finish boosts usability and professionalism on the set. They are lightweight but sturdy and fully equipped for numerous projects. The distance scales are readable from both sides, as are the focal lengths. These features support focus pullers and assistant cinematographers to operate more intuitively.
Technical Information
-
Product
VDSLR 14mm T3.1 MK2
VDSLR 24mm T1.5 MK2
VDSLR 35mm T1.5 MK2
VDSLR 50mm T1.5 MK2
VDSLR 85mm T1.5 MK2
VDSLR 135mm T2.2 MK2
Maximum T-stop
T3.1
T1.5
T1.5
T1.5
T1.5
T2.2
Optical Construction
14 Elements in 10 Groups
13 Elements in 12 Groups
12 Elements in 10 Groups
9 Elements in 6 Groups
9 Elements in 7 Groups
11 Elements in 7 Groups
Negative size
24 x 36 mm
24 x 36 mm
24 x 36 mm
24 x 36 mm
24 x 36 mm
24 x 36 mm
Angle of View
Full Frame(1:1x)
115.7°
84.1°
63.1°
46.2°
28.4°
18.8°
Super 35
98.4°
65.3°
47.1°
33.7°
20.6°
13.6°
APS-C (1:1.5x)
92.5°
61.3°
43.9°
31.3°
19.1°
12.6°
APS-C (1:1.6x)
89.1°
58.0°
41.3°
29.4°
17.9°
11.7°
MFT (1:2x)
72.7°
47.6°
33.4°
23.6°
14.4°
9.0°
Minimum Focusing Distance (∞ ~)
0.28 m
0.92 ft
0.25 m
0.82 ft
0.3 m
0.98 ft
0.45m
1.47 ft
1.1 m
3.6 ft
0.8 m
2.62 ft
Filter Size (mm)
(Not detachable)
77
77
77
72
77
Diaphragm Blades
9
9
9
9
9
9
Angle
Focus Angle
139°
139°
146°
150°
140°
195°
Aperture Angle
Nikon F
45°
48°
48°
48°
48°
52.5°
Others
36°
49°
Weather Sealing
Nikon F
X
X
X
X
X
X
Others
O
O
O
O
O
O
Size
Canon EF
87.0 x 96.1 mm
3.42 x 3.78 in
84.0 x 97.1 mm
3.31 x 3.82 in
84.0 x 111.5 mm
3.31 x 4.39 in
84.0 x 74.7 mm
3.31 x 2.94 in
84.0 x 74.7 mm
3.31 x 2.94 in
84.0 x 122.1 mm
3.31 x 4.81 in
Sony E
87.0 x 122.1 mm
3.42 x 4.80 in
84.0 x 123.1 mm
3.31 x 4.85 in
84.0 x 137.5 mm
3.31 x 5.41 in
84.0 x 100.7 mm
3.31 x 3.96 in
84.0 x 100.7 mm
3.31 x 3.96 in
84.0 x 148.1 mm
3.31 x 5.83 in
Canon RF
87.0 x 121.1 mm
3.42 x 4.76 in
84.0 x 121.1 mm
3.31 x 4.77 in
84.0 x 135.5 mm
3.31 x 5.33 in
84.0 x 98.7 mm
3.31 x 3.89 in
84.0 x 98.7 mm
3.31 x 3.89 in
84.0 x 146.1 mm
3.31 x 5.75 in
Nikon F
87.0 x 93.6 mm
3.42 x 3.68 in
84.0 x 94.6 mm
3.31 x 3.72 in
84.0 x 109.0 mm
3.31 x 4.29 in
84.0 x 72.2 mm
3.31 x 3.63 in
84.0 x 72.2 mm
3.31 x 3.63 in
84.0 x 119.6 mm
3.31 x 4.71 in
Canon M
87.0 x 123.0 mm
3.42 x 4.84 in
84.0 x 123.0 mm
3.31 x 4.84 in
84.0 x 137.4 mm
3.31 x 5.41 in
84.0 x 100.6 mm
3.31 x 3.96 in
84.0 x 100.6 mm
3.31 x 3.96 in
84.0 x 148.0 mm
3.31 x 5.83 in
Fuji X
87.0 x 123.4 mm
3.42 x 4.85 in
84.0 x 123.4 mm
3.31 x 4.86 in
84.0 x 137.8 mm
3.31 x 5.43 in
84.0 x 101.0 mm
3.31 x 3.98 in
84.0 x 101.0 mm
3.31 x 3.98 in
84.0 x 148.4 mm
3.31 x 5.84 in
MFT
87.0 x 120.9 mm
3.42 x 4.75 in
84.0 x 121.9 mm
3.31 x 4.80 in
84.0 x 136.3 mm
3.31 x 5.38 in
84.0 x 99.5 mm
3.31 x 3.92 in
84.0 x 99.5 mm
3.31 x 3.92 in
84.0 x 146.9 mm
3.31 x 5.78 in
Weight
Canon EF
650.2 g
1.43 lb
597.8 g
1.32 lb
738.0 g
1.63 lb
525.8 g
1.16 lb
561.6 g
1.24 lb
866.4 g
1.91 lb
Sony E
711.2 g
1.56 lb
649.0 g
1.43 lb
789.2 g
1.74 lb
576.4 g
1.27 lb
612.4 g
1.35 lb
918.2 g
2.02 lb
Canon RF
746.4 g
1.64 lb
662.6 g
1.46 lb
802.8 g
1.77 lb
590.6 g
1.30 lb
626.4 g
1.38 lb
960.2g
2.12 lb
Nikon F
639.6 g
1.41 lb
587.0 g
1.29 lb
723.8 g
1.60 lb
514.8 g
1.13 lb
549.2 g
1.21 lb
850.4 g
1.87 lb
Canon M
696.4 g
1.53 lb
642.0 g
1.42 lb
778.6 g
1.72 lb
569.4 g
1.26 lb
606.0 g
1.34 lb
913.2 g
2.01 lb
Fuji X
697.4 g
1.53 lb
640.0 g
1.41 lb
776.0 g
1.71 lb
567.4 g
1.25 lb
603.0 g
1.33 lb
912.0 g
2.01 lb
MFT
692.8 g
1.52 lb
636.0 g
1.40 lb
772.6 g
1.70 lb
563.8 g
1.24 lb
600.0 g
1.32 lb
908.4 g
2.00 lb
-
Gear Ring
Position
Module
A
B
C
D
Focus
Diameter
Aperture Diameter
Canon EF
Sony E
Canon RF
Nikon F
Canon M
Fuji X
MFT
Canon EF
Others
Length
0.8 mm
10 mm
4 mm
46.8 mm
10.5 mm
36.5 mm
34.5 mm
8 mm
36.2 mm
36.8 mm
35.3 mm
73.6 mm
70.4 mm
73.6 mm
-
VDSLR 14mm T3.1 MK2
MTF CHART
-
VDSLR 24mm T1.5 MK2
MTF CHART
-
VDSLR 35mm T1.5 MK2
MTF CHART
-
VDSLR 50mm T1.5 MK2
MTF CHART
-
VDSLR 85mm T1.5 MK2
MTF CHART
-
VDSLR 135mm T2.2 MK2
MTF CHART
-
VDSLR 14mm T3.1 MK2
Optical Construction
-
VDSLR 24mm T1.5 MK2
Optical Construction
-
VDSLR 35mm T1.5 MK2
Optical Construction
-
VDSLR 50mm T1.5 MK2
Optical Construction
-
VDSLR 85mm T1.5 MK2
Optical Construction
-
VDSLR 135mm T2.2 MK2
Optical Construction
| Product | VDSLR 14mm T3.1 MK2 | VDSLR 24mm T1.5 MK2 | VDSLR 35mm T1.5 MK2 | VDSLR 50mm T1.5 MK2 | VDSLR 85mm T1.5 MK2 | VDSLR 135mm T2.2 MK2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum T-stop | T3.1 | T1.5 | T1.5 | T1.5 | T1.5 | T2.2 | ||||||||
| Optical Construction | 14 Elements in 10 Groups | 13 Elements in 12 Groups | 12 Elements in 10 Groups | 9 Elements in 6 Groups | 9 Elements in 7 Groups | 11 Elements in 7 Groups | ||||||||
| Negative size | 24 x 36 mm | 24 x 36 mm | 24 x 36 mm | 24 x 36 mm | 24 x 36 mm | 24 x 36 mm | ||||||||
| Angle of View | Full Frame(1:1x) | 115.7° | 84.1° | 63.1° | 46.2° | 28.4° | 18.8° | |||||||
| Super 35 | 98.4° | 65.3° | 47.1° | 33.7° | 20.6° | 13.6° | ||||||||
| APS-C (1:1.5x) | 92.5° | 61.3° | 43.9° | 31.3° | 19.1° | 12.6° | ||||||||
| APS-C (1:1.6x) | 89.1° | 58.0° | 41.3° | 29.4° | 17.9° | 11.7° | ||||||||
| MFT (1:2x) | 72.7° | 47.6° | 33.4° | 23.6° | 14.4° | 9.0° | ||||||||
| Minimum Focusing Distance (∞ ~) | 0.28 m | 0.92 ft | 0.25 m | 0.82 ft | 0.3 m | 0.98 ft | 0.45m | 1.47 ft | 1.1 m | 3.6 ft | 0.8 m | 2.62 ft | ||
| Filter Size (mm) | (Not detachable) | 77 | 77 | 77 | 72 | 77 | ||||||||
| Diaphragm Blades | 9 | 9 | 9 | 9 | 9 | 9 | ||||||||
| Angle | Focus Angle | 139° | 139° | 146° | 150° | 140° | 195° | |||||||
| Aperture Angle | Nikon F | 45° | 48° | 48° | 48° | 48° | 52.5° | |||||||
| Others | 36° | 49° | ||||||||||||
| Weather Sealing | Nikon F | X | X | X | X | X | X | |||||||
| Others | O | O | O | O | O | O | ||||||||
| Size | Canon EF | 87.0 x 96.1 mm | 3.42 x 3.78 in | 84.0 x 97.1 mm | 3.31 x 3.82 in | 84.0 x 111.5 mm | 3.31 x 4.39 in | 84.0 x 74.7 mm | 3.31 x 2.94 in | 84.0 x 74.7 mm | 3.31 x 2.94 in | 84.0 x 122.1 mm | 3.31 x 4.81 in | |
| Sony E | 87.0 x 122.1 mm | 3.42 x 4.80 in | 84.0 x 123.1 mm | 3.31 x 4.85 in | 84.0 x 137.5 mm | 3.31 x 5.41 in | 84.0 x 100.7 mm | 3.31 x 3.96 in | 84.0 x 100.7 mm | 3.31 x 3.96 in | 84.0 x 148.1 mm | 3.31 x 5.83 in | ||
| Canon RF | 87.0 x 121.1 mm | 3.42 x 4.76 in | 84.0 x 121.1 mm | 3.31 x 4.77 in | 84.0 x 135.5 mm | 3.31 x 5.33 in | 84.0 x 98.7 mm | 3.31 x 3.89 in | 84.0 x 98.7 mm | 3.31 x 3.89 in | 84.0 x 146.1 mm | 3.31 x 5.75 in | ||
| Nikon F | 87.0 x 93.6 mm | 3.42 x 3.68 in | 84.0 x 94.6 mm | 3.31 x 3.72 in | 84.0 x 109.0 mm | 3.31 x 4.29 in | 84.0 x 72.2 mm | 3.31 x 3.63 in | 84.0 x 72.2 mm | 3.31 x 3.63 in | 84.0 x 119.6 mm | 3.31 x 4.71 in | ||
| Canon M | 87.0 x 123.0 mm | 3.42 x 4.84 in | 84.0 x 123.0 mm | 3.31 x 4.84 in | 84.0 x 137.4 mm | 3.31 x 5.41 in | 84.0 x 100.6 mm | 3.31 x 3.96 in | 84.0 x 100.6 mm | 3.31 x 3.96 in | 84.0 x 148.0 mm | 3.31 x 5.83 in | ||
| Fuji X | 87.0 x 123.4 mm | 3.42 x 4.85 in | 84.0 x 123.4 mm | 3.31 x 4.86 in | 84.0 x 137.8 mm | 3.31 x 5.43 in | 84.0 x 101.0 mm | 3.31 x 3.98 in | 84.0 x 101.0 mm | 3.31 x 3.98 in | 84.0 x 148.4 mm | 3.31 x 5.84 in | ||
| MFT | 87.0 x 120.9 mm | 3.42 x 4.75 in | 84.0 x 121.9 mm | 3.31 x 4.80 in | 84.0 x 136.3 mm | 3.31 x 5.38 in | 84.0 x 99.5 mm | 3.31 x 3.92 in | 84.0 x 99.5 mm | 3.31 x 3.92 in | 84.0 x 146.9 mm | 3.31 x 5.78 in | ||
| Weight | Canon EF | 650.2 g | 1.43 lb | 597.8 g | 1.32 lb | 738.0 g | 1.63 lb | 525.8 g | 1.16 lb | 561.6 g | 1.24 lb | 866.4 g | 1.91 lb | |
| Sony E | 711.2 g | 1.56 lb | 649.0 g | 1.43 lb | 789.2 g | 1.74 lb | 576.4 g | 1.27 lb | 612.4 g | 1.35 lb | 918.2 g | 2.02 lb | ||
| Canon RF | 746.4 g | 1.64 lb | 662.6 g | 1.46 lb | 802.8 g | 1.77 lb | 590.6 g | 1.30 lb | 626.4 g | 1.38 lb | 960.2g | 2.12 lb | ||
| Nikon F | 639.6 g | 1.41 lb | 587.0 g | 1.29 lb | 723.8 g | 1.60 lb | 514.8 g | 1.13 lb | 549.2 g | 1.21 lb | 850.4 g | 1.87 lb | ||
| Canon M | 696.4 g | 1.53 lb | 642.0 g | 1.42 lb | 778.6 g | 1.72 lb | 569.4 g | 1.26 lb | 606.0 g | 1.34 lb | 913.2 g | 2.01 lb | ||
| Fuji X | 697.4 g | 1.53 lb | 640.0 g | 1.41 lb | 776.0 g | 1.71 lb | 567.4 g | 1.25 lb | 603.0 g | 1.33 lb | 912.0 g | 2.01 lb | ||
| MFT | 692.8 g | 1.52 lb | 636.0 g | 1.40 lb | 772.6 g | 1.70 lb | 563.8 g | 1.24 lb | 600.0 g | 1.32 lb | 908.4 g | 2.00 lb | ||
|
Gear Ring Position |
Module | A | B | C | D |
Focus Diameter |
Aperture Diameter | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Canon EF | Sony E | Canon RF | Nikon F | Canon M | Fuji X | MFT | Canon EF | Others | ||||||
| Length | 0.8 mm | 10 mm | 4 mm | 46.8 mm | 10.5 mm | 36.5 mm | 34.5 mm | 8 mm | 36.2 mm | 36.8 mm | 35.3 mm | 73.6 mm | 70.4 mm | 73.6 mm |
MTF CHART
MTF CHART
MTF CHART
MTF CHART
MTF CHART
MTF CHART
Optical Construction
Optical Construction
Optical Construction
Optical Construction
Optical Construction
Optical Construction
