New Release of the AF 35mm F1.4 FE

The 2nd Generation

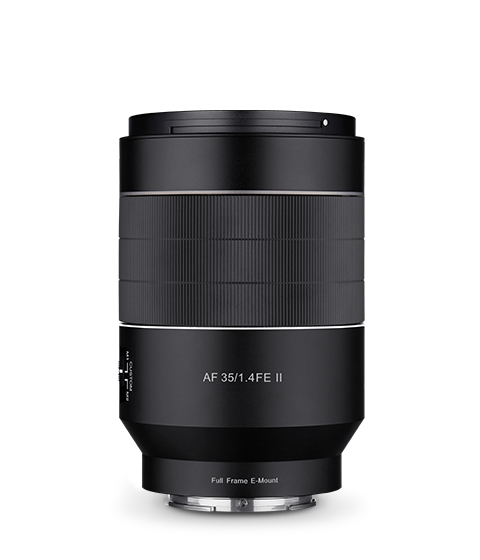

AF 35mm F1.4 FE II

With excellent optical performance and a bright aperture F1.4, now you can capture colorful daily life.
The AF performance that is faster and more accurate than before with the adoption of the STM motor provides the best results not only for photography but also for video recording.
In addition, the 'Custom switch' and 'Focus hold button' functions added to maximize user convenience will allow you to enjoy the fun of shooting. Meet the newly launched AF 35mm F1.4 FE II.

작성자 R&D Engineer / Taesung Kim
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지

The 2nd Generation

Samyang Optics is renewing its Autofocus lens lineup to celebrate its 50th anniversary. Following the first renewal product, the AF 50mm F1.4 FE II, this time, the AF 35mm F1.4 FE II renewal product is now announced. The AF 35mm F1.4 FE II is the second edition of the AF 35mm F1.4 FE, and it is one of the lenses that has been loved by many people since Samyang released its first Autofocus lens in 2016. Lens standards are constantly changing and Samyang is launching this AF 35mm F1.4 FE II lens as the most universal lens of all time. Some may consider that the market is filled with similar focal lengths already, however, Samyang has taken additional steps to innovate.

1. Excellent image performance even at maximum F1.4 aperture with beautiful bokeh
2. Fast, precise, and quiet AF performance
3. Professional control & upgraded reliability







Excellent Resolution with Large Aperture F1.4

  • Sharp & Clear
    from Corner-to-Corner

    The 2 ASP(aspherical) and 2 HR(high refractive) elements in this new AF 35mm F1.4 FE II lens deliver stunning contrast and amazing resolution. Samyang's advanced coating technology maintains superb image clarity, even in challenging lighting conditions. The corner-to-corner sharpness is maintained even at maximum aperture, so optical performance is consistent at all exposure settings.


  • Extremely Narrow Depth of Field
    with Refined Beautiful Bokeh

    The F1.4 maximum aperture of this new AF 35mm F1.4 FE II lens makes it easier to capture clear images in low light, and amazing out-of-focus images. A 9-blade circular aperture design creates the stunning beautifully blurred background at a narrow depth of field. Its smooth bokeh and blurred background can make subjects stand out in images with deep dimensional impact.


  •

  • Perfect Lens for both Photographers & Videographers

    • Faster, Precise, Quiet
      Auto Focus Performance

      Samyang’s Linear Stepping Motor (STM) provides the high-thrust efficiency needed for fast, precise, quiet AF and tracking, thus maximizing the advantages of Sony E-Mount cameras. Compared to the previous AF 35mm F1.4 FE, this new AF 35mm F1.4 FE II is optimized for not only photo shooting, but also video shooting by minimizing vibration and noise. Tracking the subject accurately and quickly, the AF also operates quietly and smoothly when shooting video. Samyang's Linear STM satisfies both photographers and videographers with quieter and more accurate control of the focusing lens groups.


    • Short Minimum Focal Distance 0.29m (0.95ft)

      The minimum focal distance is just 29cm (0.95ft), making the lens even more versatile. It is possible to produce impressive close-ups, even capturing small details, at very close to the subject. With a short minimum focal distance and large aperture of the AF 35mm F1.4 FE II, you can get close-ups by highlighting the subject with a smoothly expressed background!


    •

    • Maximized Usability and Realiability

      • Enhanced Operability

        Important features of the AF 35mm F1.4 FE II include: Customizable 1) Focus hold button & 2) Custom switch. Overall, this is a lens that meets professional requirements for control and reliability, for both stills and videos.

        Focus Hold Button
        Pressing this button on the lens will keep the lens locked to that focusing distance. You can assign functions such as Eye AF in settings on the camera body.

        Custom Switch
        There is a custom switch, which can be set to allow adjustment of the aperture silently, by rotating the focus ring. Using the optional Lens Station, you can set up the mode to suit your own preference*.
        • MODE 1 : Operates with focus control function (MF, DMF mode)
        • MODE 2 : Operates with aperture control function (AF mode)
        (*More functions will be added through firmware updates in the future)


      • Modern Design & Weather-Sealing

        The AF 35mm F1.4 FE II has been developed and enhanced, taking into consideration not only the design but also the user's shooting environment. It has a stylish silver ring, matt finish, and weather-sealing (4 spots) which also protects the lens from light rain, snow, and dust.


      •

Technical Information
  • Specifications
    Model Name AF 35mm F1.4 FE II
    Aperture Range F1.4 ~ 16
    Lens Optical Construction 11 Elements in 9 Groups
    Special Lens ASP 2, HR 2
    Coating UMC
    Minimum Focusing Distance 0.29m (0.95ft)
    Magnification Ratio x 0.18
    Filter Size (mm) Φ 67.0
    Maximum Diameter (mm) Φ 75.0
    Number of Blades 9
    Mount Sony FE
    Angle of View Full Frame 65.5˚
    APS-C 45.2˚
    Length 115.0mm / 4.5in
    Weight 659g / 23.2oz
    Weather Sealing O
    Custom Mode Switch O
    Focus Hold Button O
    AF Motor Linear STM

  • MTF Chart





  • Optical Construction





We noticed that you are accessing from United-States of America.

If you're looking for another location, please select your location.

Country/ Region
Online shop
GO
Newsletter Feedback Shop
Now

Samyang’s Guide to Achieving the Optimal Angle of View

The perfect spacing and distance are always necessary when shooting all kinds of subjects, including people, to give them a proper relationship with the beautiful space around them. So, what’s the exact distance that helps you best appreciate a work of art, or a photo?

The correct answer is the diagonal length of the full frame of a subject.

표준화각 자료 이미지
표준화각 자료 이미지

The best standpoint from which to appreciate the full view of a subject is the distance of the diagonal length of the subject frame. This wider angle is superior to standing closer at a 50 degree angle to get a more detailed view. This notion of an ideal distance or view point is also applicable in the world of photography.

For still images, keeping a distance equal to the diagonal length of the full image surface is recommended. The full frame sensor of a digital camera is 36 x 24mm and the diagonal length is 43.26mm so any distance close to this number is nearer to the ideal than the currently accepted industry standard of 50mm.

Back when film cameras were common, 45mm was the industry standard and this continued as reflex cameras needed extra space to fit a mirror. However, as mirrorless cameras become more popular again, there has been a need to return to this industry standard…which is the impetus for the Samyang AF 45mm F1.8 FE. With less distortion than a 35mm lens and wider angles than a 55mm lens, the Samyang AF 45mm F1.8 FE is a perfect lens for portraits, landscapes, architecture photography, and pictures of pets.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

[What is Dolly Shot? How to Shoot Easily]

[What is Dolly shot?]

A dolly shot, also referred to as a tracking shot or trucking shot, is a camera movement technique used by cinematographers to track and follow a subject in motion. To achieve this, the camera is mounted on a device called a "dolly," which facilitates smooth tracking movement. The dolly can move in front of, behind, or alongside the subject, which can be a person, a location, a product, or any other object of focus in the frame. Through this, you can control the emotional distance between the subject and the viewer by highlighting the audiovisual and dramatic effects.

[How to take a Dolly Shot simply by handheld]

Tip. If the moving distance is long, the camera may shake, so please shoot at a focal length between 35 and 100mm.
1. Stand at a distance of about 1.5 to 2 meters away from the subject.
2. Set the custom switch to MF and Mode 3 and adjust the focal length to about 100mm.
3. After focusing on the subject, set the aperture to F8~16.
4. Slowly turn the zoom ring to the left (towards the wide-angle end) while using your upper body and arms to move the camera toward your subject.
5. Dolly Shot complete!
※ When shooting from a farther distance from the subject, use a cart or gimbal for more stable shooting.
