Schneider-Kreuznach x LK SAMYANG

VERSATILE
SUPER-WIDE ZOOM

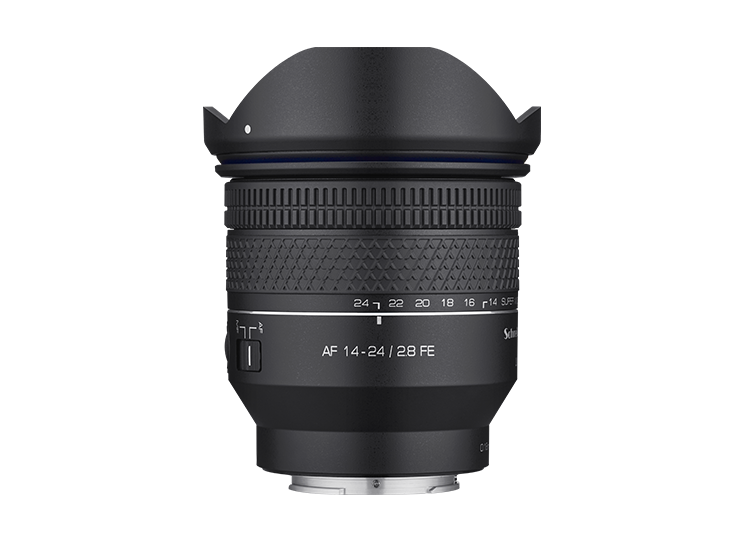

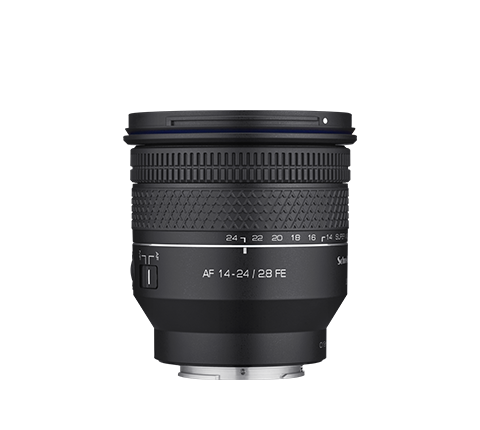

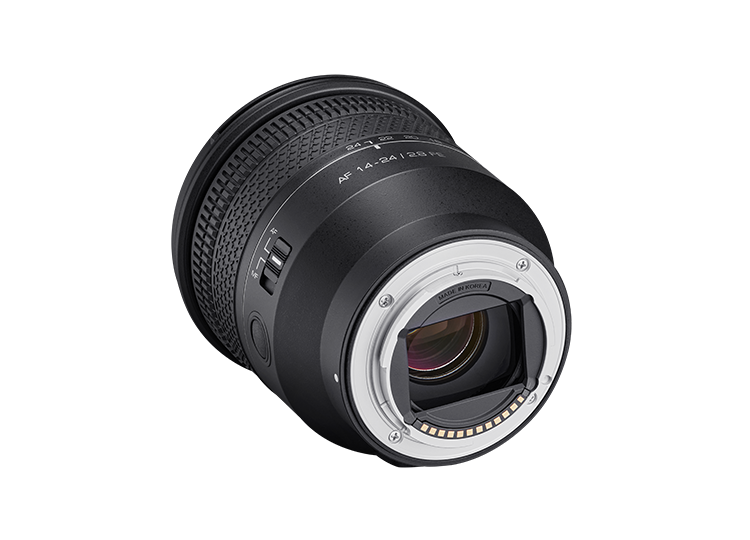

AF 14-24mm F2.8 FE

AF 14-24mm F2.8 FE

I’m proud to introduce the AF 14-24mm F2.8 FE, LK Samyang's
first super-wide angle autofocus zoom lens for the Sony Full-Frame E-mount cameras. At just 88mm long and weighing 445g, it's perfect for astrophotography, travel, and everyday use. With a minimum focus distance of 0.18m, this compact and versatile lens is unlike anything you've seen before!

작성자 Product Planner / Dubin Kim
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지





Pack Smaller, Carry Lighter,
Capture More

The AF 14-24mm F2.8 FE is a compact and lightweight super-wide-angle zoom lens jointly developed by LK Samyang and Schneider-Kreuznach.

Measuring 88.8mm in length and weighing only 445g, its small size makes it easy to carry, allowing for versatile use in various shooting scenarios, including architecture, landscapes, nightscapes, and stunning astrophotography. Notably, it is the world's first* ultra-wide zoom lens that allows for the attachment of front filters, offering both high practicality and usability.

*As of April 22, 2025, among Sony E-mount full-frame mirrorless compatible zoom lenses with a focal length of 14mm or less and a fixed aperture of F2.8, according to research conducted by LK Samyang.






  • Schneider-Kreuznach x LK SAMYANG

    Innovative Product Development Achieved Through Extensive Collaboration

    LK Samyang and Schneider-Kreuznach have jointly developed the innovative AF 14-24mm F2.8 FE lens through their extensive collaboration. This innovative lens combines Schneider-Kreuznach's renowned optical expertise with LK Samyang’s advanced technology, delivering ideal performance for shooting environments that require a wide angle of view while maintaining a lightweight design and excellent resolution.

    About Schneider-Kreuznach: Founded in 1913, Schneider-Kreuznach is a globally renowned German optics brand trusted in space exploration, cinema, and industrial optics.  In the consumer imaging market, it is best known for its premium B+W filters and is recognized for its strict standards in optical precision and durability.

  • SUPER-WIDE

    Super-Wide Versatility

    The AF 14-24mm F2.8 FE is a versatile super-wide lens that delivers an exceptional view throughout its entire focal range. At 14mm, it captures dynamic perspectives with an angle of view of 114.2º, while the 24mm provides flexibility for various subjects and scenes with an angle of view of 84.1º. Its broad zoom range makes this lens ideal for landscapes, cityscapes, nightscapes, astrophotography, architecture, interiors, and environmental portraits. Designed to accommodate different shooting styles, this lens enables creative expression in every frame.

  • SUPER-LIGHT

    The 445g Revolution

    Smaller and Lighter than Ever!
    This remarkable lens is specifically designed for Sony full-frame E-mount cameras and is a game-changer. Weighing just 445 grams, it is significantly lighter than any other full-frame zoom lens available. Perfect for travel and outdoor photography, it takes up minimal space in your bag and lightens your load, allowing you to focus on capturing the moment.

  • Filter Play. No Limits.

    Compatible with 77mm Front Filter

    This lens stands out from conventional ultra-wide zooms by allowing the easy attachment of 77 mm front filters. This is something that many photographers have been asking for, especially when shooting landscapes, and this feature lets them use polarizers and ND filters to achieve desired effects. Now, enjoy the freedom to capture your unique shots with greater ease and flexibility.

SUPERB RESOLUTION

  • Fast and Bright

    Featuring an advanced optical design with 15 elements arranged in 11 groups, this lens provides exceptional sharpness, even at its maximum aperture of F2.8. Enjoy outstanding resolution across the entire frame, starting from the center. By enabling the 'Lens Compensation' function on your Sony camera, you can correct distortion and vignetting, resulting in sharper and clearer images.


    •

      Crisp and Clear, Even in the Dark

      The three aspherical elements effectively reduce coma aberrations, even at its wide-open F2.8. This allows you to capture stars in the night sky clearly and roundly, without any blurring. The true value of this lens becomes even more apparent when capturing breathtaking night scenes and engaging in astrophotography.

    • SUPER CLOSE-UP

      Go Closer, Go Bolder

      With a consistent minimum focusing distance of just 0.18m from 14mm to 24mm, you can achieve up to 0.26x magnification for impactful close-up shots. An ultra-wide perspective enhances scale, making nearby objects stand out dramatically against a beautifully blurred background.

    • SUPER-PRECISE

      Fast, Quiet, and Accurate Autofocus

      Featuring a SAMYANG linear stepping motor, this lens provides fast and silent autofocus performance. Its accurate focus tracking guarantees sharp images, even when photographing fast-moving subjects.

    User-Friendly Features

    • Custom Button and Function

      The AF 14-24mm F2.8 FE is designed with smooth focus and zoom rings, as well as a reliable AF/MF switch located on the barrel. Additionally, it features a custom button that is preset to 'focus lock,' enabling you to lock the focus while the button is pressed. You can also customize its function at any time through your camera settings. These features contribute to a more enjoyable user experience.

      *Aperture Ring: With the Samyang Lens Manager, you can use the focus ring as an aperture ring in autofocus (AF) mode, giving you enhanced control and flexibility in your photography.


      •

        Easy Firmware Update and Weather Sealing

        The lens is equipped with a USB port that allows for seamless firmware updates via a direct cable connection. This ensures easy access to the latest software features and performance enhancements. The lens features weather-sealing, providing protection against water droplets, light rain, snow, and dust. ※The lens is not guaranteed to be dust- and drip-resistant in all situations and under all conditions.

      • Wrapped in a Better Touch

        No extra frills. Just Better.

        The AF 14-24mm F2.8 FE now comes in a beautifully designed matte-black box that embodies its impressive performance and premium quality. This packaging radiates reliability and elegance, transforming the unboxing experience into a moment of excitement while safeguarding what truly matters.

Technical Information
  • Specifications
    Model Name AF 14-24mm F2.8 FE
    WIDE TELE
    Aperture Range F2.8 ~ 22
    Lens Optical Construction 15 Elements in 11 Groups
    Special Lens ASP 3, HR 5, ED 3
    Coating UMC
    Minimum Focusing Distance 0.18m (0.59ft)
    Magnification Ratio x0.17 (1:5.84) x0.26 (1:3.92)
    Number of Aperture Blades 9
    Filter Size (mm) Φ 77
    Maximum Diameter (mm) Φ 84
    Mount Sony E
    Angle of View Full Frame 114.2˚ 84.1˚
    APS-C 91.7˚ 62.0˚
    Length 98.63mm / 3.9in 88.8mm / 3.5in
    Weight (without Lens Cap, Hood) 445g / 15.7oz
    Weather Sealing O
    AF/MF Mode Switch O
    AF Motor Linear STM

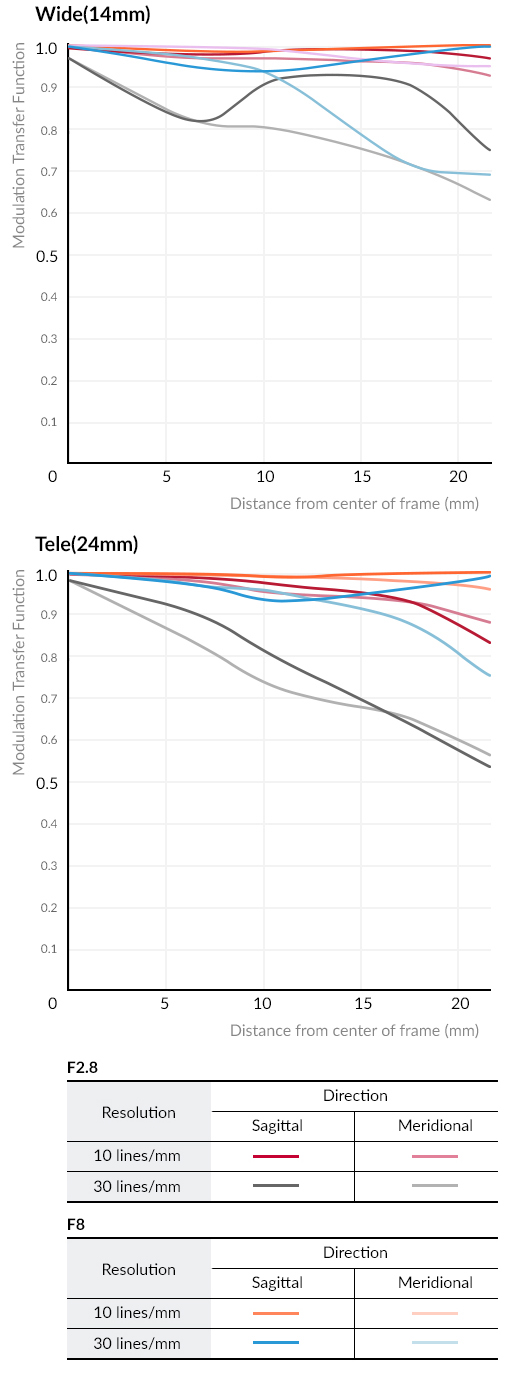

  • MTF Chart

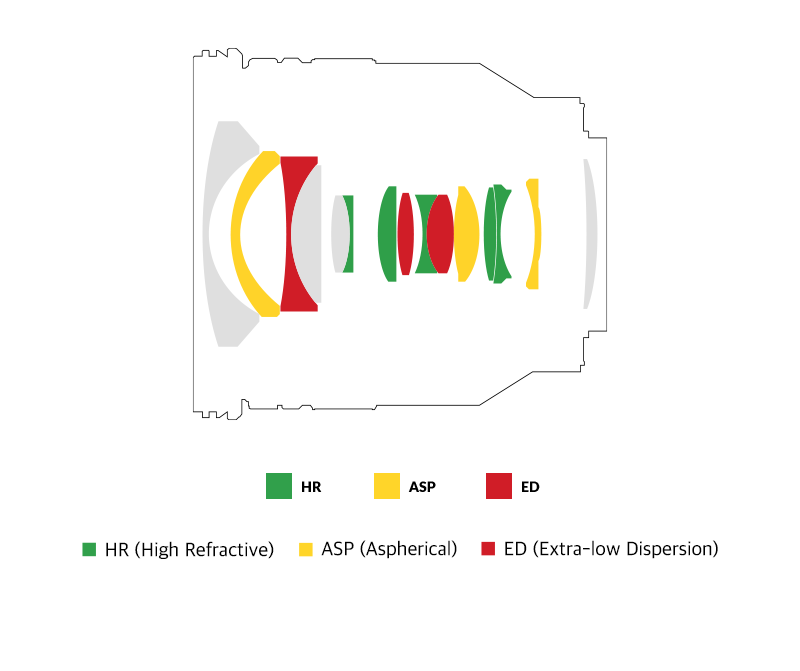

  • Optical Construction

We noticed that you are accessing from United-States of America.

If you're looking for another location, please select your location.

Country/ Region
Online shop
GO
Newsletter Feedback Shop
Now

Samyang’s Guide to Achieving the Optimal Angle of View

The perfect spacing and distance are always necessary when shooting all kinds of subjects, including people, to give them a proper relationship with the beautiful space around them. So, what’s the exact distance that helps you best appreciate a work of art, or a photo?

The correct answer is the diagonal length of the full frame of a subject.

표준화각 자료 이미지
표준화각 자료 이미지

The best standpoint from which to appreciate the full view of a subject is the distance of the diagonal length of the subject frame. This wider angle is superior to standing closer at a 50 degree angle to get a more detailed view. This notion of an ideal distance or view point is also applicable in the world of photography.

For still images, keeping a distance equal to the diagonal length of the full image surface is recommended. The full frame sensor of a digital camera is 36 x 24mm and the diagonal length is 43.26mm so any distance close to this number is nearer to the ideal than the currently accepted industry standard of 50mm.

Back when film cameras were common, 45mm was the industry standard and this continued as reflex cameras needed extra space to fit a mirror. However, as mirrorless cameras become more popular again, there has been a need to return to this industry standard…which is the impetus for the Samyang AF 45mm F1.8 FE. With less distortion than a 35mm lens and wider angles than a 55mm lens, the Samyang AF 45mm F1.8 FE is a perfect lens for portraits, landscapes, architecture photography, and pictures of pets.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Preset Aperture Control Function?

On the Preset Aperture Control function, the aperture blade operates smoothly like a "De-clicked lens", which is advantageous for video recording.
Fujifilm cameras are engineered to control the aperture according to the minimum exposure value(F-stop), so when the camera controls the aperture, it blinks momentarily to set the proper exposure.

AF 75mm F1.8 X intentionally disconnects the communication with the camera body and the lens itself on the Preset Aperture Control function, so it is possible to smoothly adjust the exposure without flickering. ISO and shutter speed are adjusted according to the changed exposure by controlling the aperture, so the exposure value can be changed even with the 1/2 F-stop.

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

What is Recommended Settings for Preset Aperture Control Function?

The Preset Aperture Control function operates only when shooting video(Movie mode) and the focusing mode of the camera is set to AF mode. Please set the aperture at f/1.8 before switching the "Custom Switch" to "Mode 2. It is recommended to set the "Exposure mode" as A mode (Aperture Priority AE) or M mode (Manual Exposure).

* How to use the “Preset Aperture Control” function?

1) Camera Body Setting
      AF Mode → Video Mode ('A' or 'M' mode) → Set the Aperture @F1.8
(2) Lens Setting
      Switch your "Custom Switch” to “Mode 2(M2)"
(3) Now, you're ready to use the Preset Aperture Control function with your focus ring

[What is Dolly Shot? How to Shoot Easily]

[What is Dolly shot?]

A dolly shot, also referred to as a tracking shot or trucking shot, is a camera movement technique used by cinematographers to track and follow a subject in motion. To achieve this, the camera is mounted on a device called a "dolly," which facilitates smooth tracking movement. The dolly can move in front of, behind, or alongside the subject, which can be a person, a location, a product, or any other object of focus in the frame. Through this, you can control the emotional distance between the subject and the viewer by highlighting the audiovisual and dramatic effects.

[How to take a Dolly Shot simply by handheld]

Tip. If the moving distance is long, the camera may shake, so please shoot at a focal length between 35 and 100mm.
1. Stand at a distance of about 1.5 to 2 meters away from the subject.
2. Set the custom switch to MF and Mode 3 and adjust the focal length to about 100mm.
3. After focusing on the subject, set the aperture to F8~16.
4. Slowly turn the zoom ring to the left (towards the wide-angle end) while using your upper body and arms to move the camera toward your subject.
5. Dolly Shot complete!
※ When shooting from a farther distance from the subject, use a cart or gimbal for more stable shooting.

DSLR / Full Frame
1D X Mark Ⅱ
1D X
1Ds Mark Ⅲ
1Ds
5DsR
5Ds
5D Mark Ⅳ
5D Mark Ⅲ
6D Mark Ⅱ
6D
DSLR / APS-H
1D Mark Ⅲ
1D
Mirrorless / APS-C
M6
M5
M10
M3
M2
DSLR / APS-S
7D Mark Ⅱ
7D
80D
70D
60D
30D
D60
D30
77D (9000D)
760D (8000D / Rebel T6s)
1300D (Kiss X80 / Rebel T6)
1200D (Kiss X70 / Rebel T5)
200D (Kiss X9 / Rebel SL2)
800D (Kiss X9i / Rebel T7i)
700D (Kiss X9i / Rebel T7i)
100D (Kiss X7 / Rebel SL1)
650D (Kiss X6i / Rebel T4i)
600D (Kiss X5 / Rebel T3i)
550D (Kiss X4 / Rebel T2i)
500D (Kiss X3 / Rebel T1i)
1000D (Kiss F / Rebel XS)
450D (Kiss X2 / Rebel X냐)
DSLR / Full Frame
D850
D5
D810A
D4S
D810
D750
Df
D610
D4
D800
D800E
D600
D3s
D3x
D700
D3
DSLR / APS-C
D7500
D3400
D500
D5600
D7200
D5500
D3300
D7100
D5300
D5200
D7000
D300s
D300
DSLR / Full Frame
Z6
Z7
D810A
D4S
D750
D810A
DSLR / APS-C
D7200
D500
D3300
D5500
D5600
D3400
D7500

* Cameras released within 5 years from 2019 are tested.

Password reset reminder

Gildong Hong,it has been three months since your last password reset.

Forgot your password?
Please complete the form below

Send Authorization Code

Your authorization code will be sent to
Standard fees apply.

Failed

There is no ID found with that information.
Please confirm the accuracy of your information.

If you would like to create a new account, please click the below link.

Join now

Forgot your ID?
Please complete the form below

Please see the information below.

One ID found

If you would like to create a new account, please click the below link.

Join now

Failed

There is no ID found with that information.
Please confirm the accuracy of your information.

If you would like to create a new account, please click the below link.

Join now

Confirmation email sent

This is the last step to create your account.
Please follow the link sent to your email address.


Authorize account

이메일 발송 완료

고객님 메일로 임시비밀번호가 발송되었습니다.


확인

Change ID

Please enter your new email address.
Please log in with your new email address.

Current email address :
New email address :
Change email address

Change email address
Cancel

Error message

You do not have permission to access this server.
Please contact the administrator.

Go to home

Email authorization

Dear client,
Your registered email address on
Samyang Optics website is hongildong@naver.com.
Please click below to finalize your authorization to Samyang Optics.

Go to home

Didn’t join Samyang Optics?
Another user may have mistakenly entered your email address.
If you have not joined Samyang Optics, please use the link to report the mistake.

Please protect my email address.

- Samyang Optics Administrator -

Note : Please do not reply to this email as the address is a send-only account.
Please contact us with any questions via the following website. Go to website >

Protect email

There is an account created with your email address as below.
To discontinue using this account,
please click on the “block account” button.

hongildong@naver.com

Block account

Account authentication

Congratulations!
Your account has been verified.
Meet the various services of Samyang Optics!

Sign in
Go main

Find ID

There is no account matching your information.

Find ID

Confirm ID

Your ID is bebe***

Confirm

Confirm ID

There is no password matching your information.
Please check if your information is accurate.

Confirm

Find password

The reset password email has been sent to your
email address.

hongildong@naver.com

Follow the instructions in the email to reset your password.
If the email is not in your inbox, please check your spam mailbox.

Confirm

Can’t find the email?

Resend authorization mail

Find password

There is no password matching your information.
Please check if your information is accurate.

Confirm

sms test

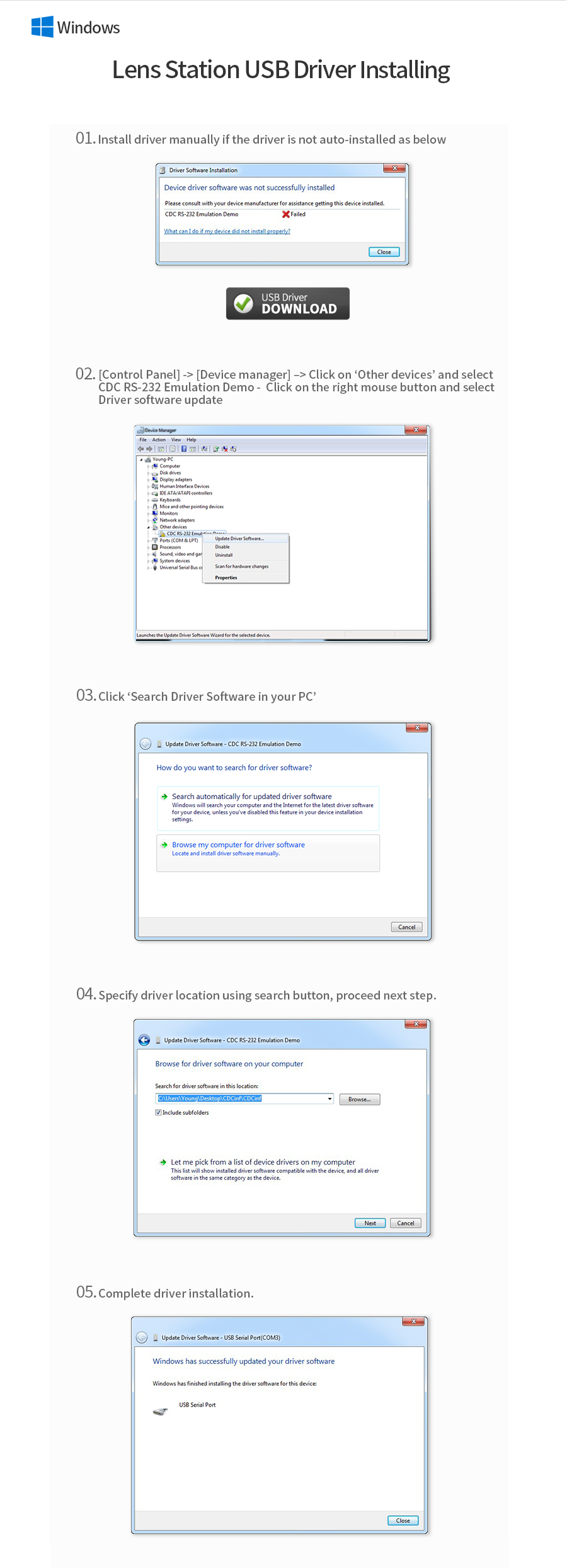

USB Driver DOWNLOAD
