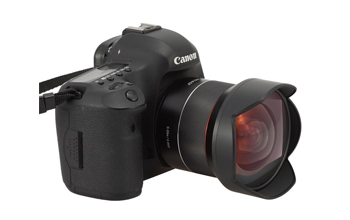

AF 14mm F2.8 EF

Samyang, premium makers of wide-angle lenses, developed its first autofocus lens for Canon mounts. This is an ultrawide angle lens that takes full frames, delivering high resolution from the center to the corners of the image, all in a lightweight package. Experience the Samyang’s world-class quality in autofocus lens.

작성자 Product Planner / Hyeyoung Song
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지

WORLD WIDE

As the first AF lens for Canon, the AF 14mm F2.8 EF lens is developed with the Samyang Optics’ globally renowned wide-angle technology. Featuring 10 groups and 15 elements possessing 7 special elements including 2 aspherical lens, 4 high-refractive index lens and 1 extra-low dispersion lens elements, it offers compact design and consistently crystal clear image quality at a wider angle of view of 116.6° with minimized distortion and aberration, thanks to its unmatched performance developed by the wide-angle technology powerhouse, Samyang Optics.

※ Setting the 'Lens aberration correction function' for Canon cameras.

To maximize the performance of the Samyang AF 14mm F2.8 EF lens, please disable the ‘Lens aberration correction function’ on your Canon camera.
* 'Peripheral illumination correction', 'Chromatic aberration correction', 'Diffraction correction', and 'Distortion correction' from the 'Lens aberration correction function' are not supported.

Compatible camera list (click)
  • As of November 2017, Samyang Optics has confirmed through internal testing that the following camera models work with the AF 14mm F2.8 EF lens. However, some camera functions may not be fully operational.
  • For mirrorless cameras, all camera functions are made fully operational only if the official “EF=EOS M” Canon mount adapter is installed.

Shop Now
  • 116.6° Ultra Wide Angle

    Ultra-wide angle allows to capture the creative space beyond what meets the eye and portray an expanded sense of dimension.

  • Crystal Clear Resolution

    Take pictures with incredible sharpness and accuracy with the Samyang’s world-class optical technology.


  • Short M.O.D

    With a minimum focal length of only 0.35m, it is possible to capture more vivid close-up images of portraits, pets, food, indoor and etc.

  • Fast, accurate and quiet Autofocus

    Samyang’s advanced technology offers very fast, accurate and quiet auto focus performance.


  • Weather Sealing

    For more stable shooting and extended lifecycle, it provides maximum protection for the lens.


  • Beautiful starburst with 7 Aperture Blades

    Featuring 7 rounded blades, it adds an artistic touch to your pictures and creates a sense of soft dimension with incredible starburst, bokeh, perfect for out-of-focus portraits and night city landscapes.

Technical Information
  • Specifications
    Model name AF 14mm F2.8 EF
    Aperture range F2.8 ~ 22
    Lens optical construction 15 Elements in 10 Groups
    Special lens 2 ASP, 1 ED, 4 HR
    Coating UMC
    Minium focusing distance 0.20m (0.65ft)
    Maximum maginification ratio x 0.15
    Filter size -
    Diaphragm blades 7
    Mount Canon EF
    Angle of view 35mm 116.6˚
    APS-C 92.8˚
    Maximum diameter 90.5mm
    Length 95.6mm
    Weight-Without lens cap 485g
    Weight 536g
  • MTF Chart
