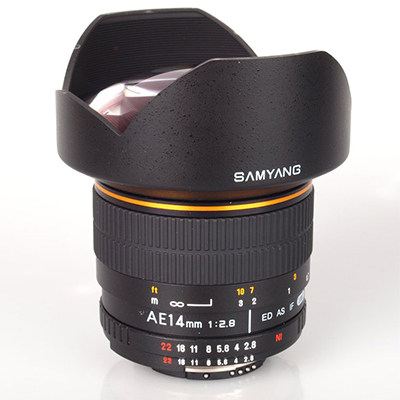

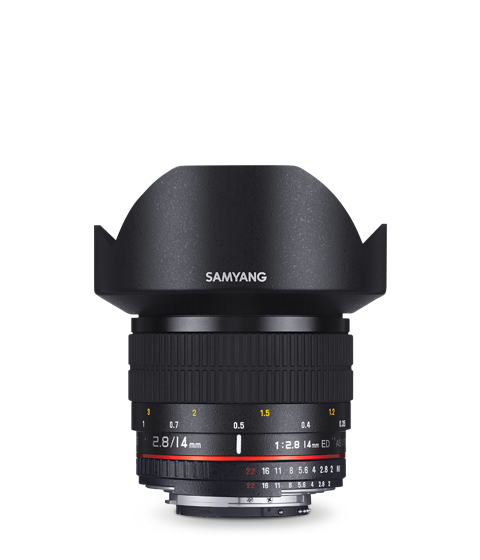

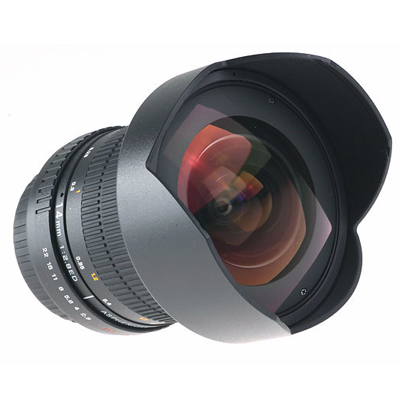

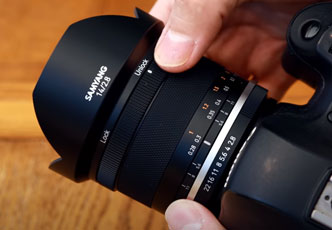

14mm F2.8 ED AS IF UMC

제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지
제품 이미지

Meet Samyang's best seller! Its luminous performance meets perfection

14mm F2.8 ED AS IF UMC is a ultra wide-angle manual focus lens designed for both Full-Frame and APS-C cameras.

14mm F2.8 ED AS IF UMC features exceptional optical performance, and excellent price advantage. Even when used wide open at F2.8 its image quality is superb, and is perfectly suited for landscape photography which requires high quality images. It's great for both professional and amateur photographers and videographers.

14mm F2.8 ED AS IF UMC Aspherical Lens features high build quality, with a built-in petal shaped lens hood to block any unnecessary light behind the camera. The Samyang 14mm F2.8 features a wide, ribbed manual focus ring which is smooth and well-damped.

The optical construction is 14 elements in 10 optical groups with 3 high refractive index elements, 2x ED element, an aspherical hybrid element plus a aspherical glass element. The latest generation of anti-reflective layers: UMC - Ultra Multi Coated are incorporated to minimise flare and ghosting. The lens is supplied with a special front snap-on lens cap, rear lens cap, and soft lens case.

An aperture control motor and CPU chip is installed within 14mm F2.8 ED AS IF UMC Canon AE lens to assist Auto Exposure(AE) for Canon cameras. The aperture can be controlled from camera body thanks to the motor and chip. Also the appropriate focus is guided with indicator light.

Available in Canon EF, Nikon F, Pentax K, Sony A, Sony E, Canon M, Fujifilm X, Samsung NX, MFT
※ Size and design may vary depending on the mount of a lens

Shop Now

  • 115.7° Ultra Wide Angle

    Ultra-wide angle allows to capture the creative space beyond what meets the eye and portray an expanded sense of dimension.


  • Aspherical Lens

    With minimal spherical aberration and distortion, you can take pictures with incredible precision.


  • Minimized Flare and Ghost Effects with Ultra Multi Coating

    By reducing the impact of flares and ghosting effects in your pictures while ensuring excellent image quality and contrast from the center to the periphery, it offers crystal clear, sharp image quality.


  • Beautiful Bokeh with 6 Aperture Blades

    Featuring 6 rounded blades, it adds an artistic touch to your pictures and creates a sense of soft dimension with incredible bokeh, perfect for out-of-focus portraits and night city landscapes.


  • Smooth Focus Ring

    Smooth focusing ensures precise control and produces images with incredible sharpness, making it the ideal choice for indoor and night shooting.

Technical Information
  • Specifications
    Model Name 14mm F2.8 ED AS IF UMC
    Aperture RangeF2.8 ~ 22
    Optical
    Construction    		 14 ELEMENTS IN 10 GROUPS (1 GLASS ASP & 1HYBRID ASP)
    Minimum
    Focusing Distance    		 0.28 m(0.9ft)
    Filter Size -
    Maximum Diameter Φ87mm
    Mount Canon EF Nikon F Pentax K Sony A Canon M Fujifilm X Samsung NX Sony E MFT
    Angle Of View 35mm 115.7˚ 115.7˚ 115.7˚ 115.7˚ - - - 115.7˚ -
    APS-C 89.9˚ 93.9˚ 93.9˚ 93.9˚ 89.9˚ 93.9˚ 93.9˚ 93.9˚ -
    FOUR-THIRDS - - - - - - - - 76.2˚
    Length 96.1mm 96.3mm 94.6mm 95.6mm 122mm 122.4mm 114.6mm 122.1mm 120.9mm
    Weight 550g 530g 530g 530g 570g 575g 570g 570g 570g
    Function A / S / M / P model (Nikon F)

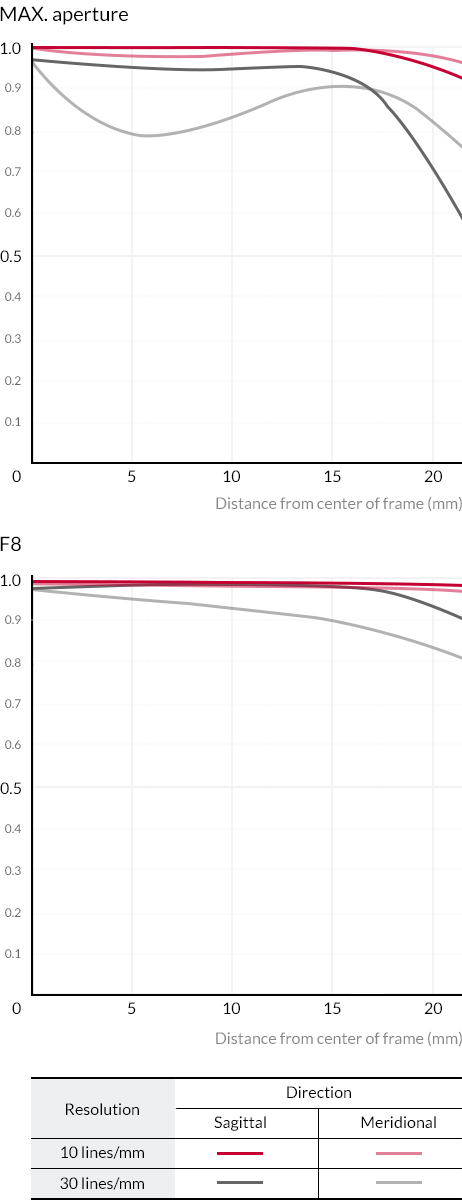

  • MTF CHART

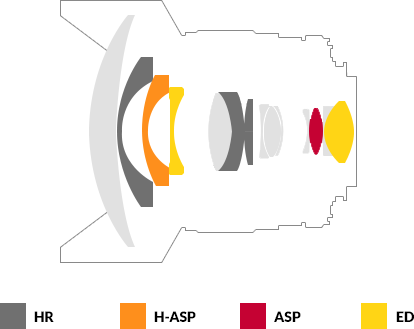

  • Optical Construction
